Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?
These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my FreeLite 3p 2022-2025 version tent. Sku 11621/14095. Thanks!"
Need a replacement pole segment?
Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the FreeLite™ 3 tent pole set (2022-2025):
- Made of red aluminum (with flared ends)
- Includes 16 pole segments
- Segment #1 measures 310mm (not including Screwlock tip)
- Spreader Pole measures 620mm (not including Screwlock tip)
- Diameter is 8.7 mm

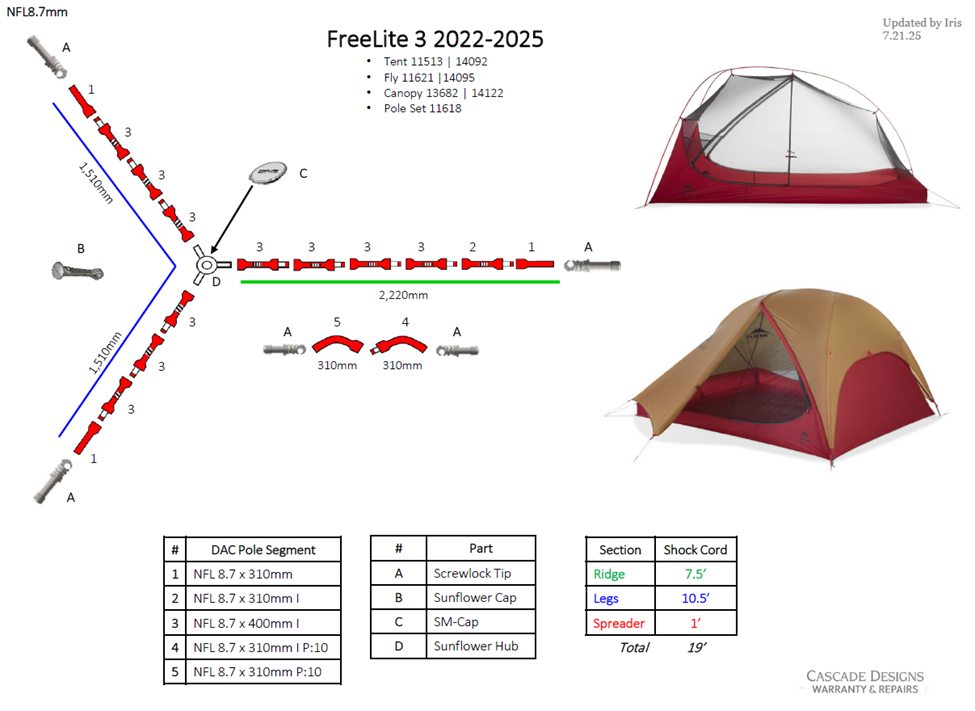

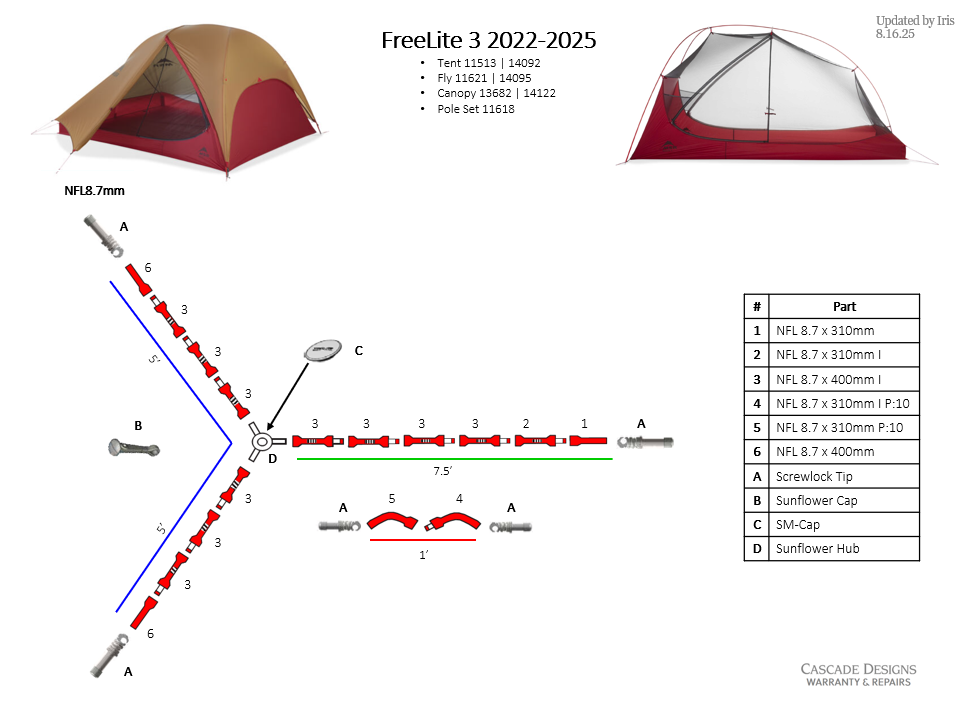

We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 5 – #3 NFL 8.7 x 400mm I
Qty 1 – #2 NFL 8.7 x 310mm I
