Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?
These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my Carbon Reflex 1p 2019-2022 version tent. Sku 09462/13060. Thanks!"
Need a replacement pole segment?

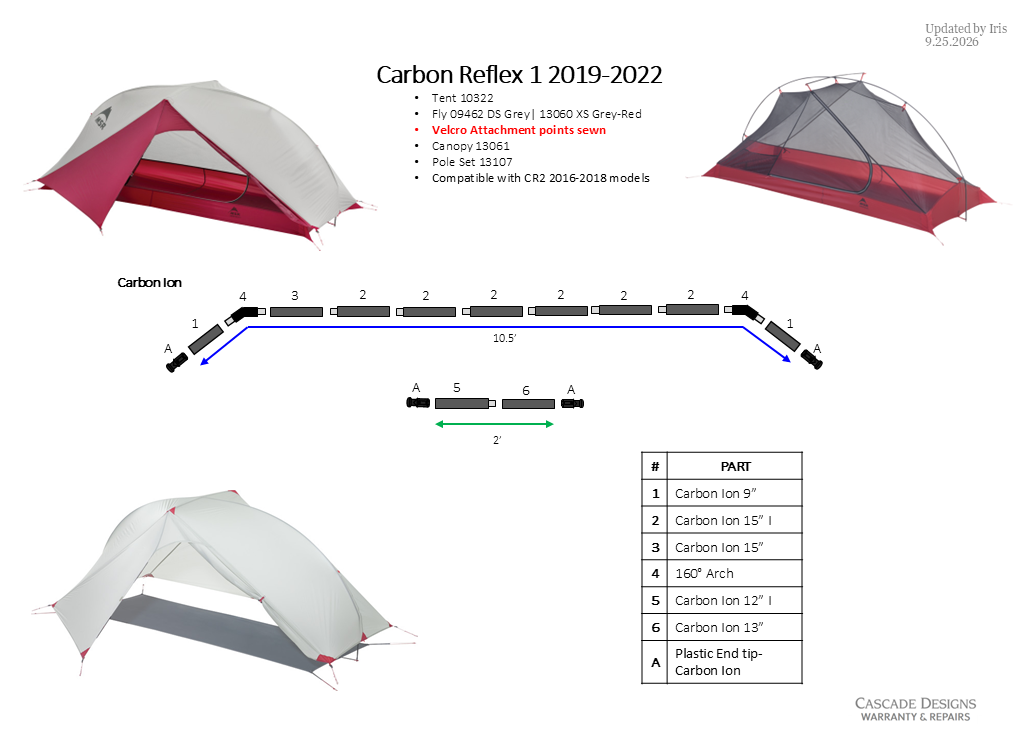

Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the Carbon Reflex 1 tent pole set (2019):
- Made of Carbon
- Includes 2 poles & 13 pole segments (Including arches)
- Segment #1 measures 9 inches
- Segment #6 measures 13 inches (Not including end tip & silver ferrule)
We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 4 – #2 Carbon Ion 15” I
Qty 1 – #1 Carbon Ion 9”
