Our 2025 Elixir uses 2 suppliers for the tent poles to ensure consistent supply. The end tips and internal diameters are just slightly different. The Scout Inc. version is shown below; you can compare with the Yunan version here. Individual pole segments cannot be shared — look closely when ordering pole segments. All other dimensions and part numbers are compatible.
Yunan pole sets do not have any markings, but the Scout Inc. pole sets are stamped DIAPOLE-PG.
Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?
These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my Elixir 4 2025 version tent. Sku 13781. Thanks!"
Need a Replacement Pole Segment?
Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the Elixir 4 2025 - Scout Inc. version tent
- Made of red and grey aluminum with: DIAPOLE-PG Stamped into most of the pole segments
- Includes 30 pole segments
- Segment #1 measures 405mm
- Diameter is 11mm (measured at the center of each segment)
- The pole ends, segments 1,2,4 and 5 have a tiny dimple near the end for the screw lock tip

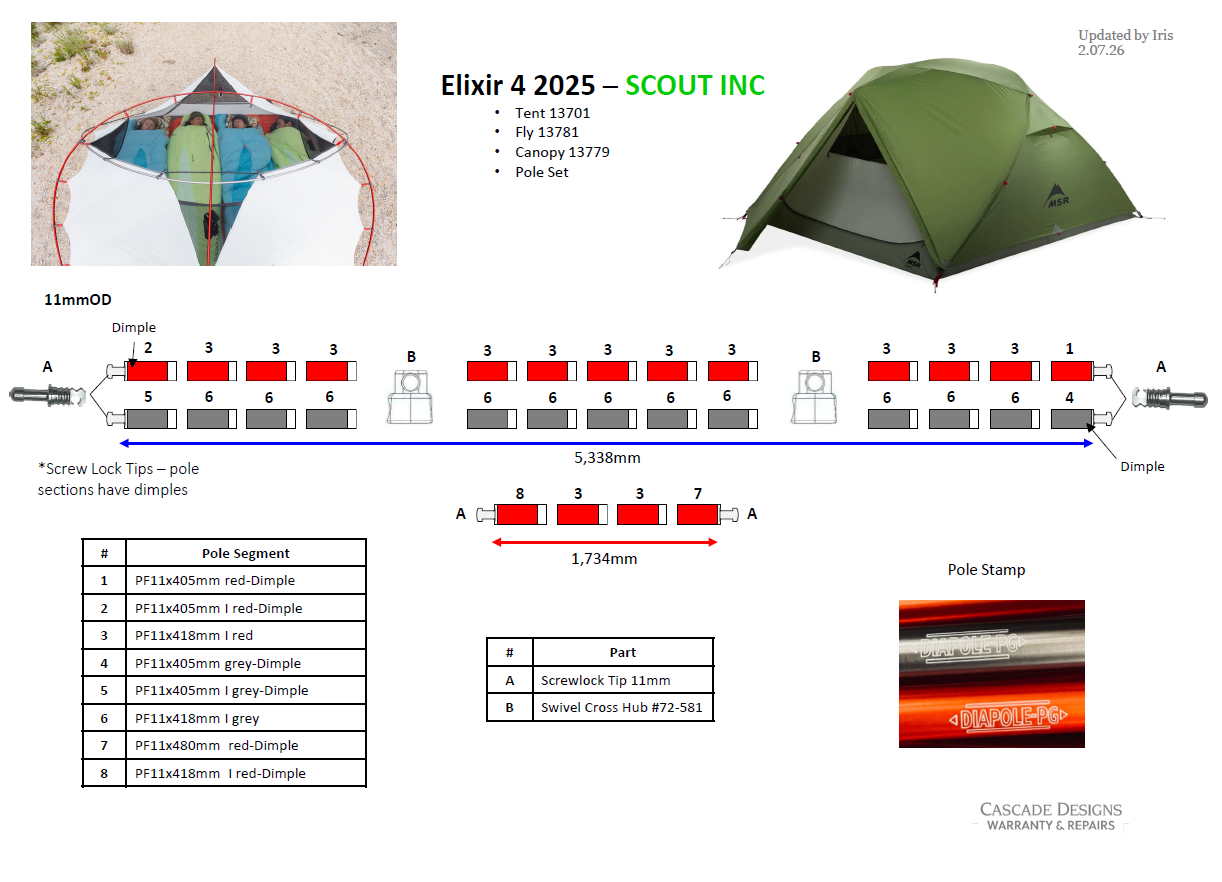

We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 1 – #2 PF11x405mm I red-Dimple
Qty 2 – #3 PF11x418mm I red
