Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?

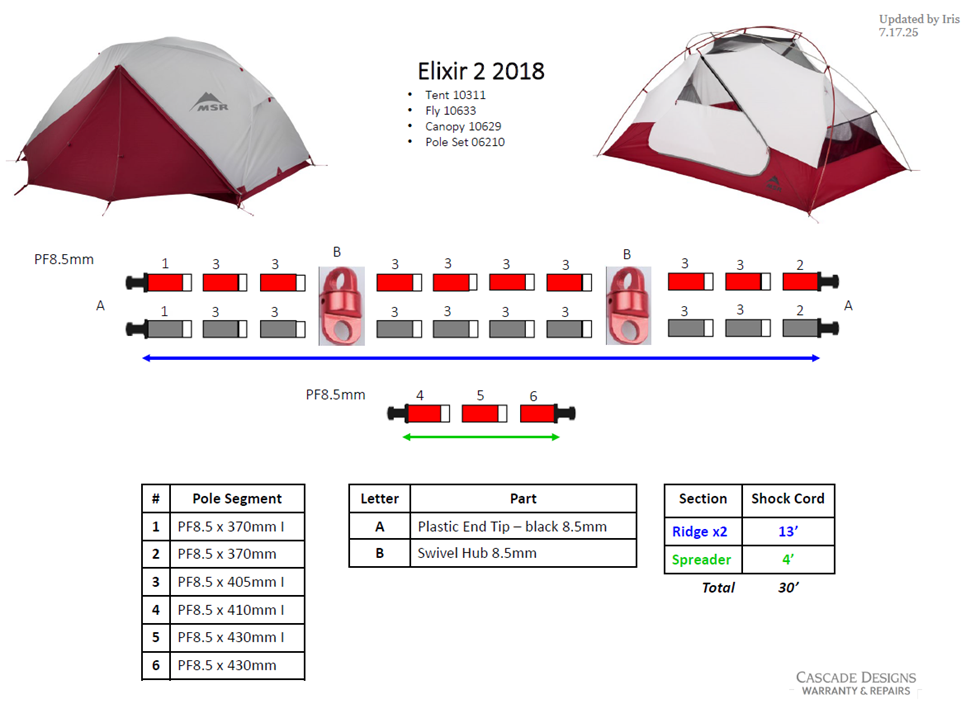

These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my Elixir 2p 2018 version tent. Sku 10633. Thanks!"
Need a Replacement Pole Segment?
Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the Elixir 2 tent pole set (2018):
- Made of red & gray aluminum
- Includes 23 pole segments
- Segment #3 measures 405mm (not including black end tip)
- Diameter is 8.5mm

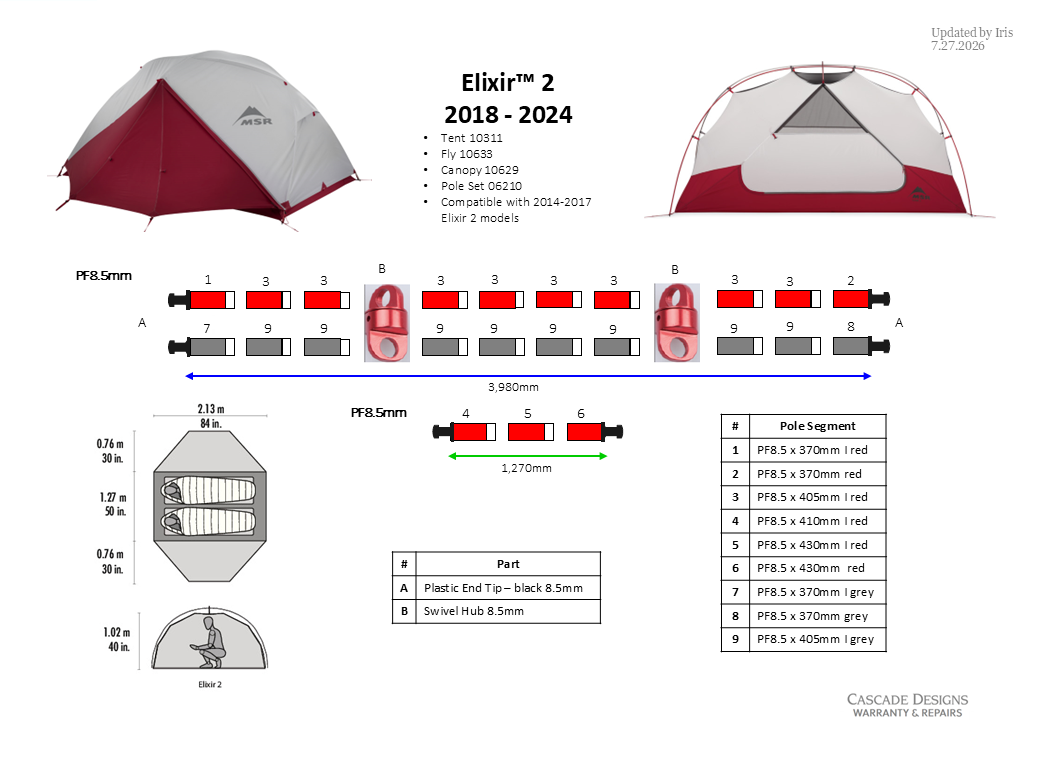

We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 5 – #3 PF8.5 x 405mm I
Qty 1 – #4 PF8.5 x 410mm I
