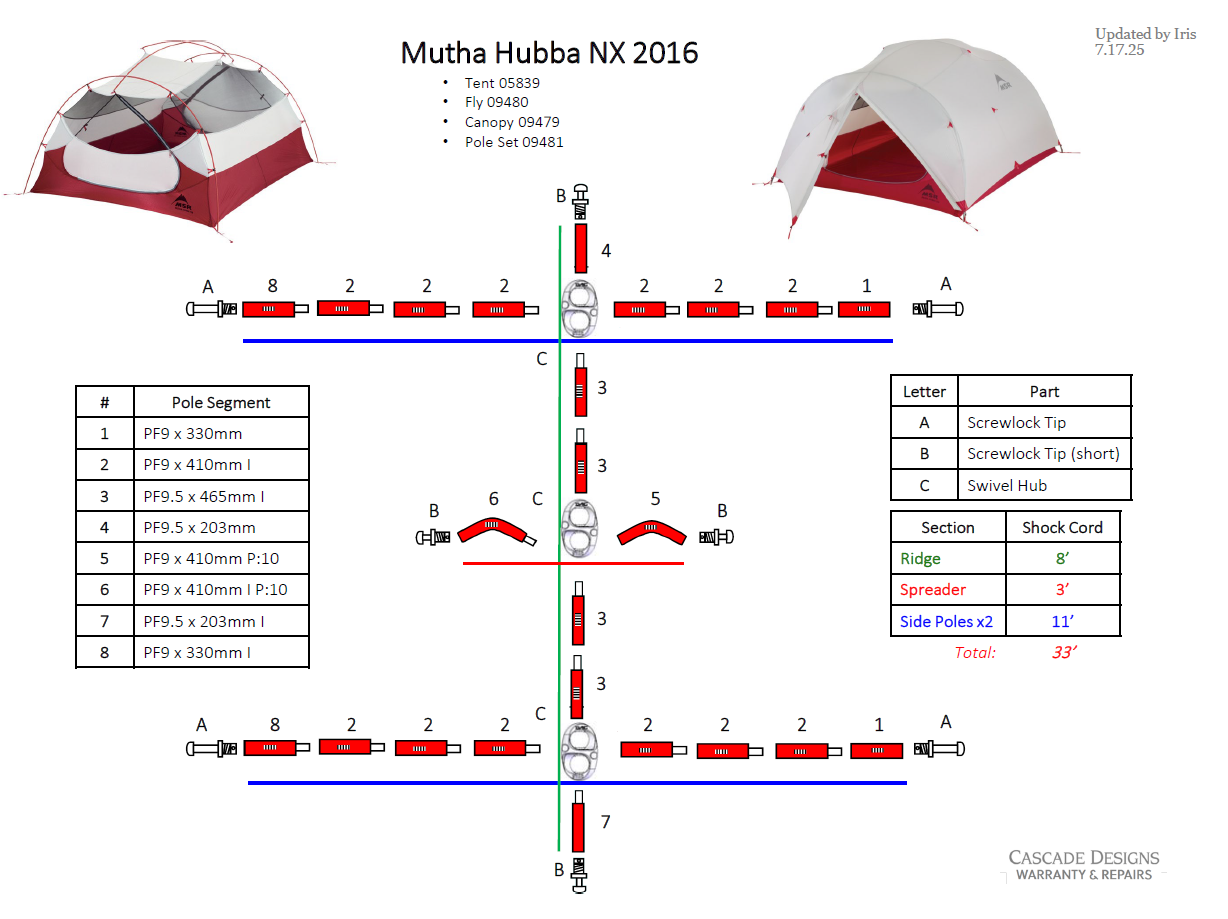

Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?
These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my Mutha Hubba NX 3p 2016-2018 version tent. Sku 09480. Thanks!"
Need a replacement pole segment?

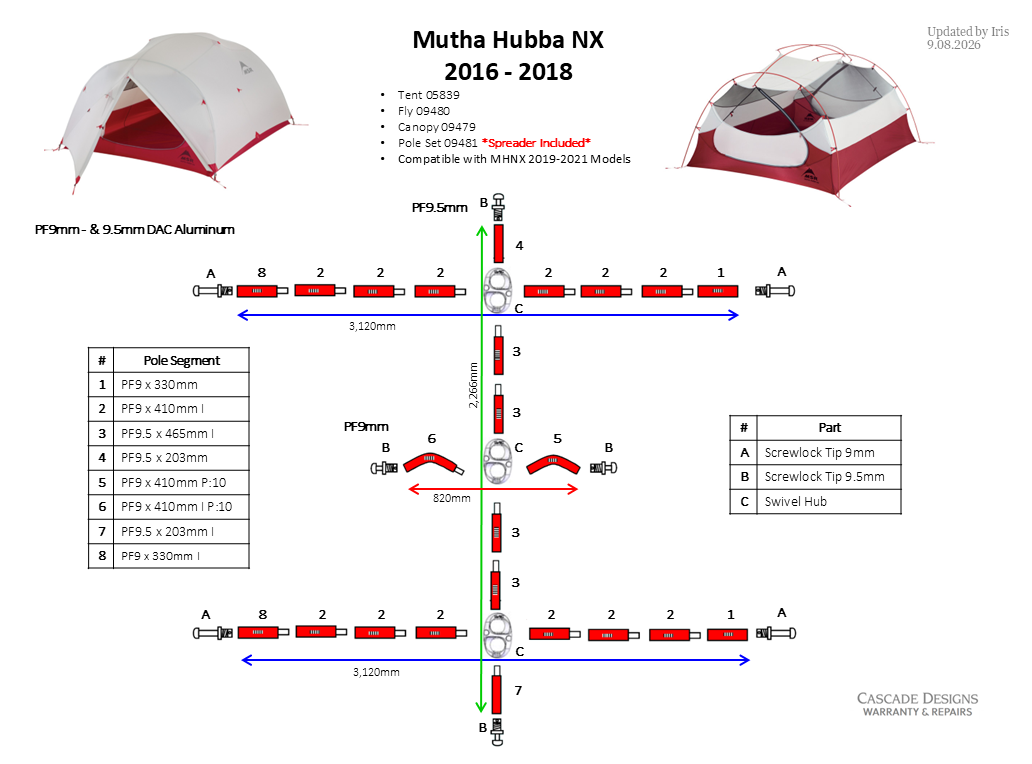

Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the Mutha Hubba™ NX tent pole set (2016–2018):
- Made of red aluminum
- Includes 24 pole segments
- Segment #1 measures 330mm
- Diameter of spreader pole(#6 & #5) is 9mm (measured at the center of each segment)
- Please note that we have 2 different Mutha Hubba NX red aluminum pole sets. The main difference is the spreader pole(#6 & #5). If your frame set does not include a spreader pole, please refer to our the Mutha Hubba NX 2014 Article.
We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 5 – #2 PF9 x 410mm I
Qty 1 – #4 PF9.5 x 203mm
