Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?
These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my Mutha Hubba NX 3p 2014-2015 version tent. Sku 02755. Thanks!"
Need a replacement pole segment?

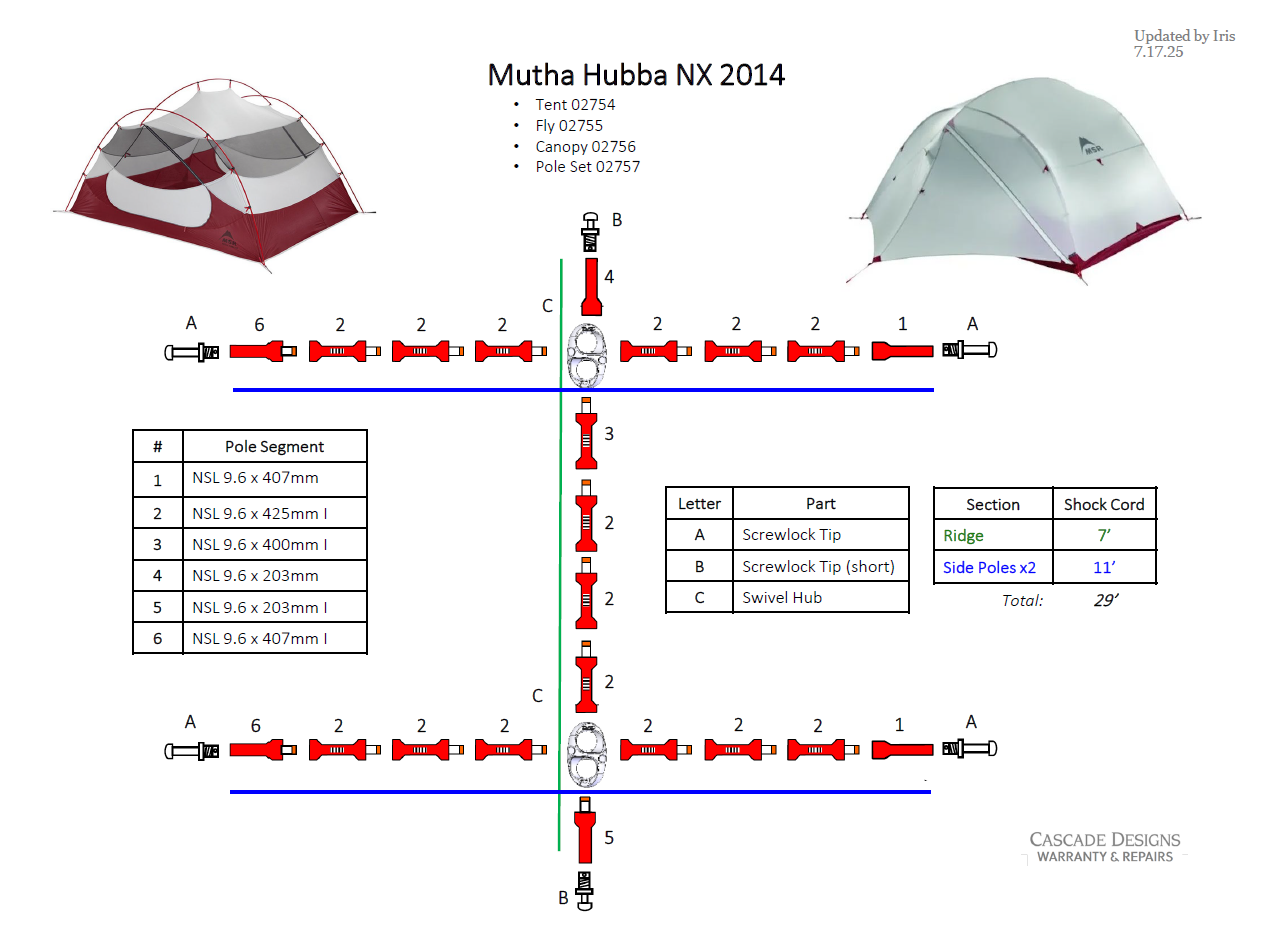

Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the Mutha Hubba™ NX tent pole set (2014):
- Made of red aluminum
- Includes 22 pole segments
- Segment #1 measures 407mm
- Diameter is 9mm (measured at the center of each segment)

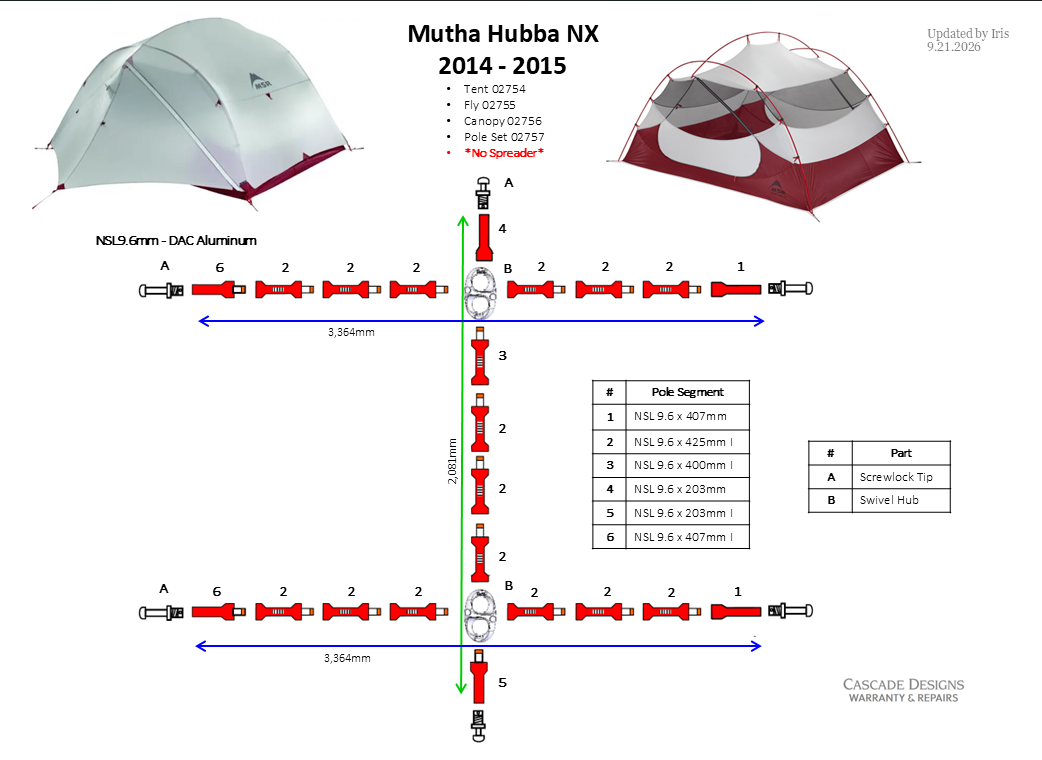

- Please note that we have 2 different Mutha Hubba NX red aluminum pole sets. The main difference is the presence of a small spreader pole in the middle of the ridgeline. If your frame set includes a spreader pole, please refer to our the Mutha Hubba NX 2016-2018 Article.
We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 5 – #2 NSL 9.6 x 425mm I
Qty 1 – #4 NSL 9.6 x 203mm
