Does this match your tent? You can find our full directory of tent diagrams here.
Looking for parts such as a rainfly, tent body (canopy), or full pole set?

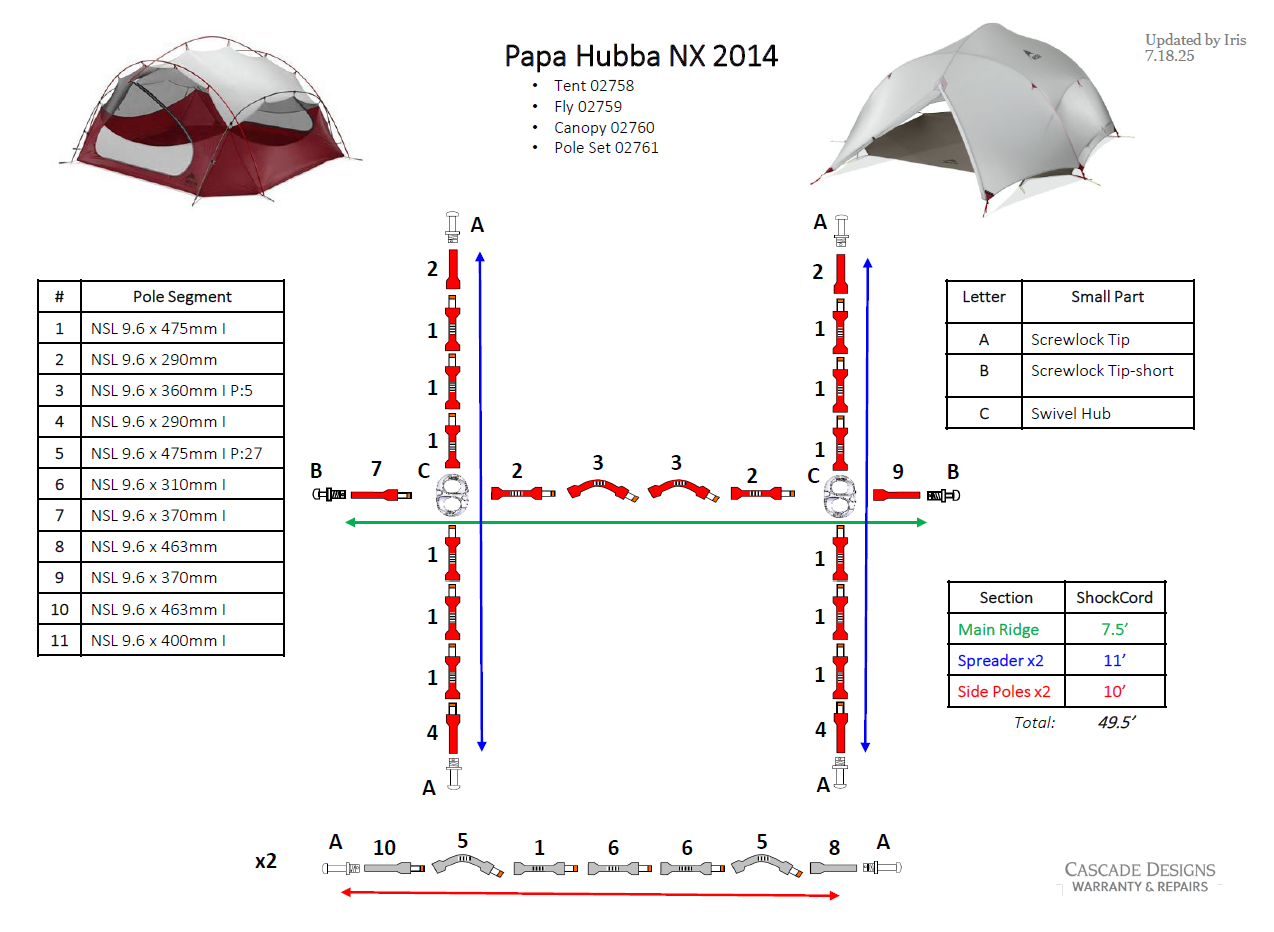

These part numbers can be found at the top of the diagram. Once you know what sku you need just Submit a Request. When submitting your request, please include the tent model, part description, sku, and quantity needed.
Example:
"I need to order one replacement rainfly for my Papa Hubba NX 4p 2014-2018 version tent. Sku 02759. Thanks!"
Need a replacement pole segment?

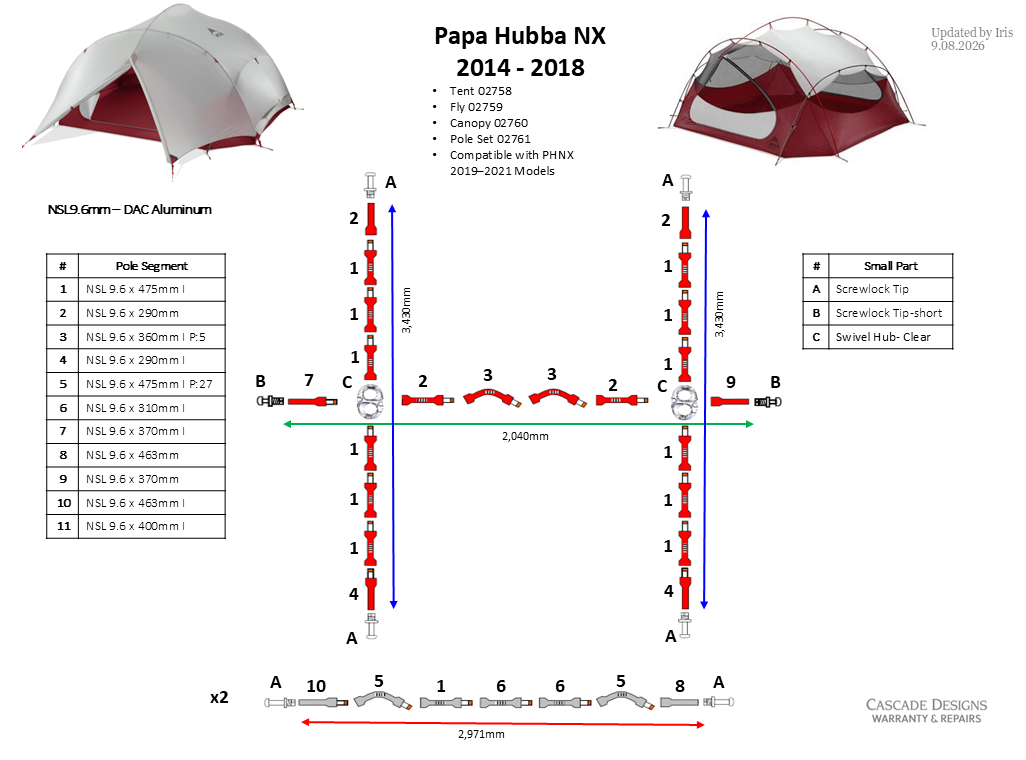

Before requesting a replacement, let’s make sure you’ve got the right tent pole set. Here's how to identify the Papa Hubba™ NX tent pole set (2014–2018):
- Made of red and grey aluminum
- Includes 36 pole segments
- Segment #2 measures 290mm
- Diameter is 9.6mm (measured at the center of each segment)
We carry replacement parts for this pole set in our Repairs Department. Just use the diagram to identify which segments you need, then Submit a Request.
Cost: $5 per segment
When submitting your request, please include the tent model, quantity needed of each segment, the Segment #, and a brief description of each pole segment.
It should look like this:
Qty 5 – #2 NSL 9.6 x 475mm I
Qty 1 – #4 NSL 9.6 x 290mm I
